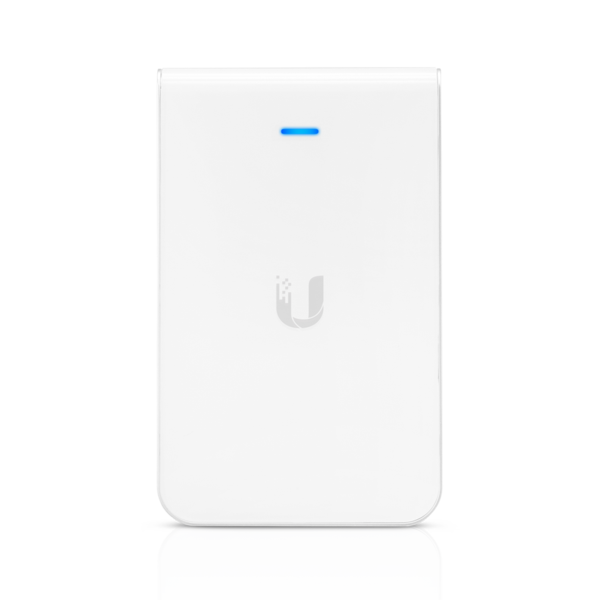

Ubiquiti Networks UAP-AC-IW Wireless Access Point 867 Mbit/s White Power over Ethernet (PoE) (UAP-AC-IW)
UAP-AC-IW
810354025549
Wall-mounted WiFi 5 AP with 4 spatial streams and a built-in 2-port switch ideal for seamless coverage of smaller rooms.
WiFi 5
4 spatial streams
25 m² (300 ft²) coverage
250+ connected devices
Powered using PoE+
(2) GbE ports with (1) PoE output*
GbE uplink
*PoE output cannot be disabled.
Thank you! We will notify you by email when the product becomes available again.
There was a problem in sending your request.
Please try again.
List of suggested product substitutes:
Ubiquiti Networks UAP-AC-IW Wireless Access Point 867 Mbit/s White Power over Ethernet (PoE)
Ubiquiti Networks UAP-AC-IW
Convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports.
Ideal for new or retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports. One of the ports provides PoE for powering and connecting an 802.3af device to the network. The UniFi AC In-Wall is capable of wireless speeds of up to 1167 Mbps with a range of up to 100 meters.
Save Money and Save Time
Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
Powerful Hardware
The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.
Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Expandable
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.
Additional Product Notes
- Simultaneous Dual-Band 802.11ac Access Point
- (1) Internal 802.3at Gigabit Ethernet Port for Data + PoE In
- (1) External Gigabit Ethernet Port for Data + 48V PoE Out*
- (1) External Gigabit Ethernet Port for Data Only
- Mounts in 1-Gang Electrical Wall Box
- Managed with UniFi Application
| Networking standards | Maximum data transfer rate | Ethernet LAN data rates | Number of users | Maximum indoor range | Security algorithms | Placement | Antennas quantity |
| IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1Q,IEEE 802.3at | 867 Mbit/s | 10,100,1000 Mbit/s | 250 user(s) | 100 m | AES,TKIP,WEP,WPA,WPA-Enterprise,WPA-PSK,WPA2 | In-wall | 1 |
| Mechanical | |
|---|---|
| Dimensions | 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1") |
| Weight | 200 g (6.4 oz) |
| Hardware | |
| Networking interface | (3) GbE RJ45 ports |
| Management interface | Ethernet |
| PoE interface | (1) PoE/PoE+ in (1) PoE out |
| Power method | PoE PoE+ (Required for PoE passthrough) |
| Power supply | UniFi PoE switch |
| PoE out | 48V pass-through (Pins 1, 2+; 3, 6-) |
| Max. power consumption | 7W (Excluding PoE output) |
| Max. PoE wattage per port by PSE | 19W* * Requires PoE switch. |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 20 dBm 20 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 2 x 2 – |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 300 Mbps 867 Mbps – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 1 dBi 2 dBi – |
| Button | Factory reset |
| Mounting | 1-Gang electrical wall box (Optional) |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 -MCS9 NSS1/2, VHT 20/40/80) |
