Teltonika RUT950 Industrial 4G/LTE & WiFi Dual SIM Router





> LTE Cat 4 with speeds up to 150 Mbps
> Automatic switch to available backup connection
> Wireless Access Point with Hotspot functionality
> Dual SIM – significantly reduce roaming costs
> 4x Ethernet ports with VLAN functionality
> Teltonika Remote Management System compatible
List of suggested product substitutes:




Teltonika RUT950 Wireless Router Fast Ethernet 3G 4G Black
Teltonika RUT950 Wireless Router
Rugged and durable professional 4G LTE Dual SIM cellular router with advanced WiFi, Ethernet and industrial grade networking functionality support. Quick to deploy, easy to manage and flexible for applications across most demanding market sectors.
RUT950 is a professional industrial 4G LTE Wi-Fi router for IoT applications. Ruggedized mobile router delivers high performance cellular communication in harsh and wide operating temperature range environments. Remote management platform RMS ready to deliver the value of M2M and IoT networking applications.

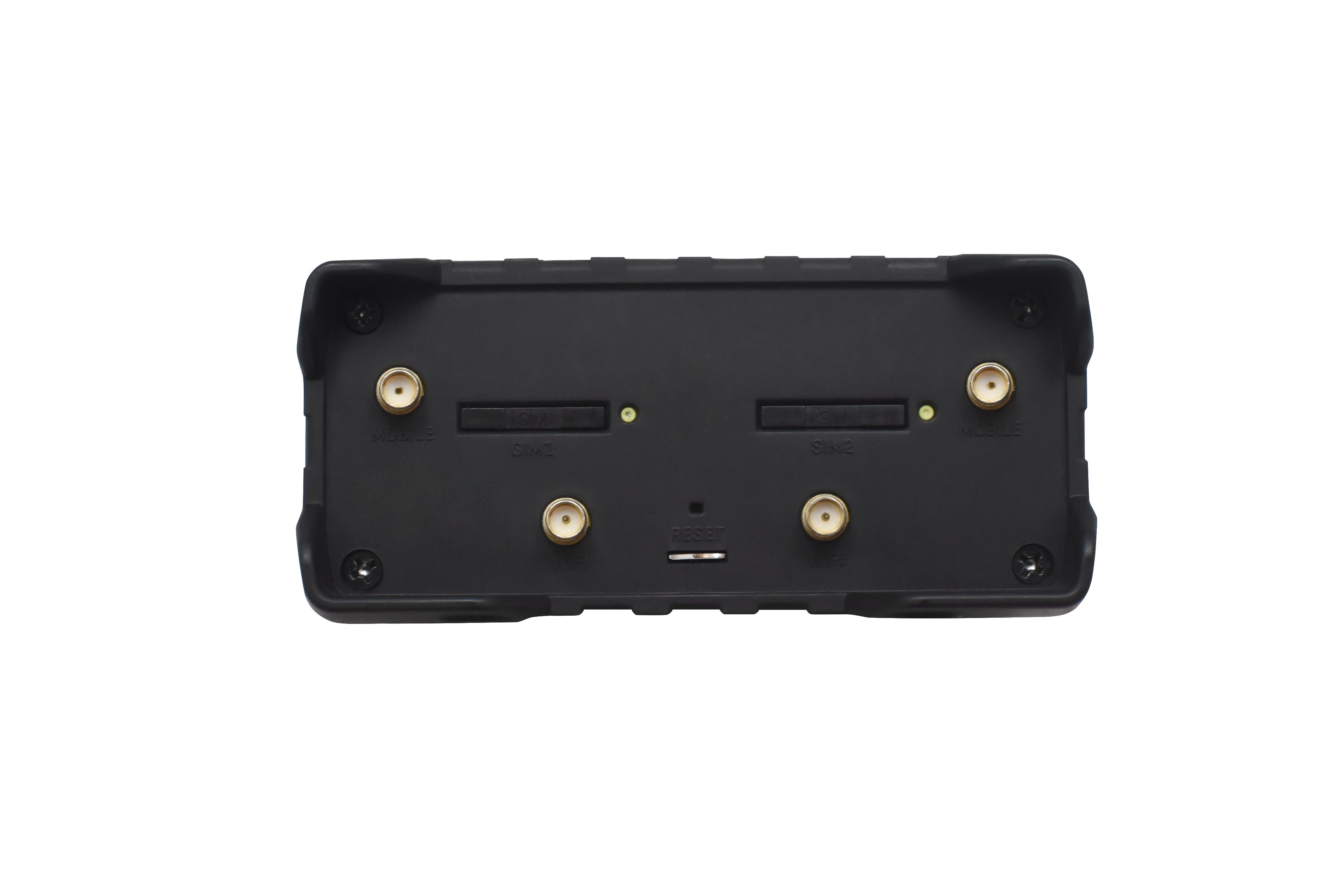

Router equipped with four ethernet ports, external 2xSIM holders, digital input/output and signal strength status LEDs indicators. External SMA antenna connectors make it possible to attach desired antennas.
RUT950 is a professional cat4 LTE router empowered by RutOS a unified operating system for all Teltonika routers for the most demanding mobile networking applications. Ensure your business continuity with Dual-SIM and 4G failover.

MOBILE
- Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
- SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- Black/White list: Operator black/white list
- Band management: Band lock, Used band status display
- APN: Auto APN
- Bridge: Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough: Router assigns its mobile WAN IP address to another device on LAN
- Multiple PDN (optional): Possibility to use different PDNs for multiple network access and services (not available in standard FW)
WIRELESS
- Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID: SSID stealth mode and access control based on MAC address
- WiFi users: up to 100 simultaneous connections
- Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
ETHERNET
- WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
NETWORK
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2)
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall: Port forward, traffic rules, custom rules
- DHCP: Static and dynamic IP allocation, DHCP Relay, Relayd
- QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS: Supported >25 service providers, others can be configured manually
- Network backup: VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover
- Load balancing: Balance your internet traffic over multiple WAN connections
- SSHFS (optional): Possibility to mount remote file system via SSH protocol (not available in standard FW)
SECURITY
- Authentication: Pre-shared key, digital certificates, X.509 certificates
- Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag based VLAN separation
- Mobile quota control: Set up custom data limits for both SIM cards
- WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
- Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
- OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
- OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
- IPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
- GRE: GRE tunnel
- PPTP, L2TP: Client/Server services can run simultaneously
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
- DMVPN: Method of building scalable IPsec VPNs
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN
- WireGuard: WireGuard VPN client and server support


Additional Product Notes
- LTE Cat 4 with speeds up to 150 Mbps
- Automatic switch to available backup connection
- Wireless Access Point with Hotspot functionality
- Dual SIM – significantly reduce roaming costs
- 4x Ethernet ports with VLAN functionality
- Teltonika Remote Management System compatible
